Products Description
|

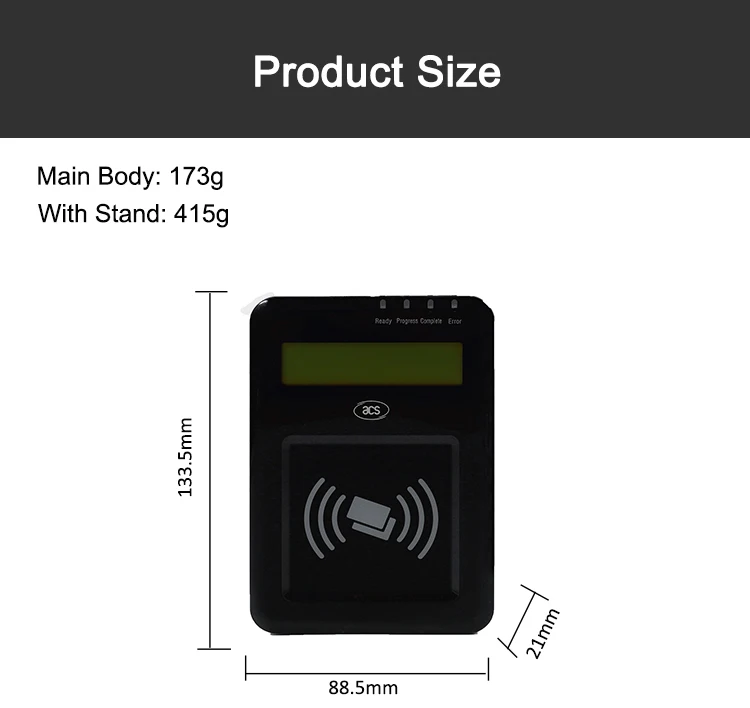

Dimensions
|
Main Body: 133.5 mm (L) x 88.5 mm (W) x 21.0 mm (H);
With Stand: 158.0 mm (L) x 95.0 mm (W) x 95.0 mm (H) |
Weight
|
Main Body: 173 g
With Stand: 415 g |
|
Interface
|
USB 2.0 Full Speed
|
Operating Distance
|
Up to 50 mm (depends on the tag type)
|
|
Supply Voltage
|
Regulated 5V DC
|
Supply Current
|
300mA (maximum); 50mA (standby); 150mA (normal)
|
Support credit card payment,NFC reader,EMV certificates ,There are more ACR readers for you to choose from, if you want to know more, please click here
ACR1222L is an LCD-equipped PC-Linked NFC Contactless Reader with USB as its host interface. It is developed based on the 13.56 MHz RFID technology and the ISO/IEC 18092 standard. ACR1222L can support ISO14443 Type A and B cards, , FELICA and all 4 types of NFC tags.
|
Operating Temperature
|
0-50°C
|
Operating Frequency
|
13.56 MHz
|
||
|
Smart Card Interface Support
|
ISO 14443 Type A & B, MIFARE, FELICA
4 types of NFC (ISO/IEC 18092) tags |

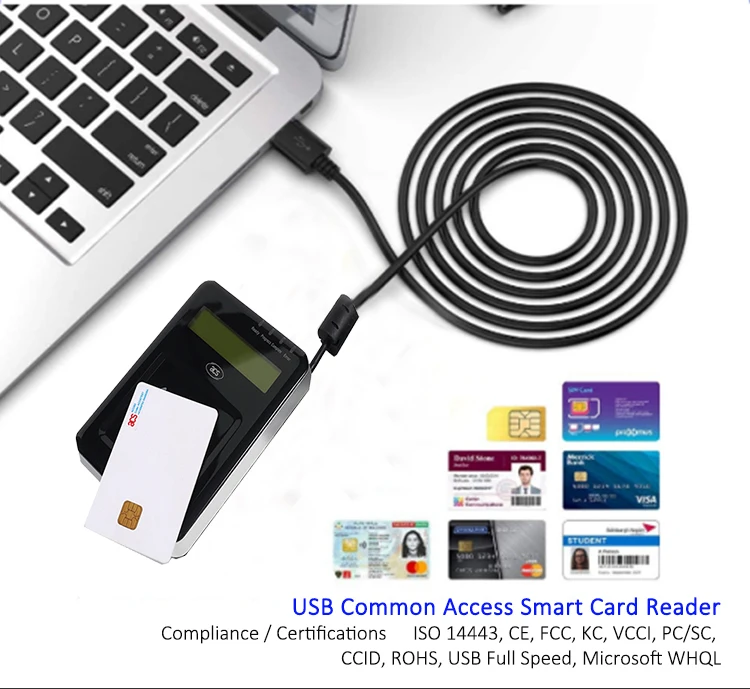

Compliance / Certifications
|
ISO 14443, CE, FCC, KC, VCCI, PC/SC, CCID, ROHS, USB Full Speed, Microsoft WHQL
|
||
|
Operating System Support
|
Windows®
Linux® Mac OS® Android™ 3.1 and above |
||||
Feature
1.USB 2.0 Full Speed Interface 2.CCID Compliance 3.Smart Card Reader: a)Read/Write speed of up to 424 kbps b)Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type) c)Support for ISO 14443 Part 4 Type A and B cards, , FELICA and all four types of NFC (ISO/IEC 18092) tags d)Built-in anti-collision feature (only one tag is accessed at any time) e)Three ISO 7816 compliant SAM slots 4.Built-in Peripherals: a)Two-line graphic LCD with interactive operability (i.e. scroll up and down, left and right, etc.) and multi-language support (i.e. Chinese, English, Japanese and several European languages) b)Four user-controllable LEDs c)User-controllable buzzer d)USB Firmware Upgradability
1.USB 2.0 Full Speed Interface 2.CCID Compliance 3.Smart Card Reader: a)Read/Write speed of up to 424 kbps b)Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type) c)Support for ISO 14443 Part 4 Type A and B cards, , FELICA and all four types of NFC (ISO/IEC 18092) tags d)Built-in anti-collision feature (only one tag is accessed at any time) e)Three ISO 7816 compliant SAM slots 4.Built-in Peripherals: a)Two-line graphic LCD with interactive operability (i.e. scroll up and down, left and right, etc.) and multi-language support (i.e. Chinese, English, Japanese and several European languages) b)Four user-controllable LEDs c)User-controllable buzzer d)USB Firmware Upgradability
